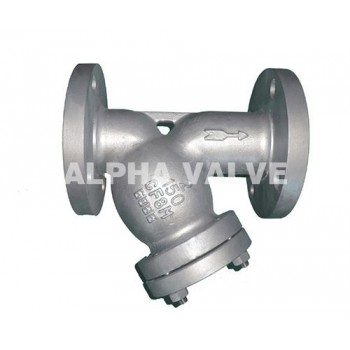

Stainless Steel Y strainer
Y strainer Specification
Size: 2"~40"
Class: 150~300Lb
Reduced & Full Port
Integral Seat
Y Type Structure
Y strainer Application
Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.
Applicable Standard:
Design & Manufacture according to : ASME B16.34;
Face to Face according to : ASME B16.10;
Flange Dimensions according to : ASME B16.5;
Pressure & Temperature according to : ASME B16.34;
Test & Inspection according to : API 598;
Visual Inspection according to : MSS SP-55;
Marking according to : MSS SP-25.
Material For Choice:
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
Monel |
M30C , M35-1 , CZ100 , etc |
Inconel |
CY40 inconel 600 , etc |
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
