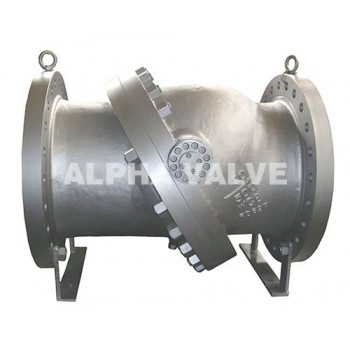

Tilting Disc Check Valve


ALPHA’s design Tilting Disc Check Valves are available for a broad range of applications.

Specification

Size Range: 2" – 40"
Pressure Class:
ASME 150 – 2500
API Standards: BS1868, ASME B16.34

Feature

· Flange Type

· Tilting Disc Design

· Non-Slamming

· Firesafe by Design



Application

Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.



Material For Choice

Carbon steel

A216 Gr. WCB , WCC , WCA , etc

Low temperature steel

A352 Gr. LCB , LCC , LC1 , etc

Cr-Mo steel

A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc

Stainless Steel

A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc

Alloy steel

CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc

Super duplex

A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc

Aluminum bronze

B148 C95500 , C95600 , C95800 , etc

Monel

M30C , M35-1 , CZ100 , etc

Inconel

CY40 inconel 600 , etc

Hastelloy

CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc

Incoloy

CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc
