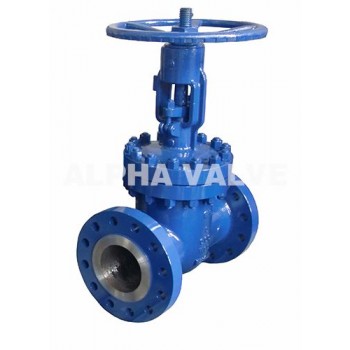

Cast Steel Gate Valve

Cast Steel Gate Valve Specification

Small flow resistance for fluid.

Only a small force is required for opening/closing.

No limitation on the flowing direction of the medium .

During opening and closing process, the friction between the disc wedge and the seat is small, so the sealing is reliable ensuring tightness and long service life.

The valve is designed in a back-seat structure.

The valve stem sealing is realized by the collaboration of flexible and woven graphite. ensuring a more reliable tightness.

Optional pressure seal bonnet type.

Optional solid-wedge type.

Optional non-rising stem structures.

Optional jacket structure.

Cast Steel Gate Valve Advantage

certain angle is formed between the two sealing faces of the single-disc or double-discs wedge gate valve and perpendicular to the pipeline axis. It is mainly used for switching on or off the medium within pipelines, that is, it is used in a full open or close manner.

Application

Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.

Applicable Standard

Design & Manufacture according to : API 600;

Face to Face according to : ASME B16.10;

Flange Dimensions according to : ASME B16.5;

Pressure & Temperature according to : ASME B16.34;

Test & Inspection according to : API 6D / API 598;

Visual Inspection according to : MSS SP-55;

Marking according to : MSS SP-25.
