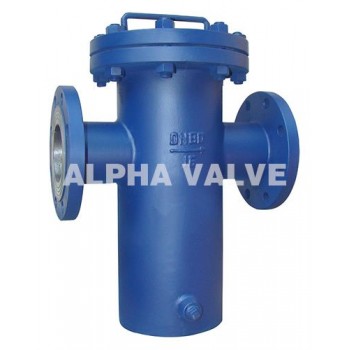

Bucket Type Strainer
Bucket type strainer Specification
Size: 2"~40"
Class: 150~300Lb
Reduced & Full Port
Integral Seat
Bucket Type Structure & Basket Type Structure
Bucket type strainer Application
Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.
Applicable Standard:
Design & Manufacture according to : ASME B16.34;
Face to Face according to : ASME B16.10;
Flange Dimensions according to : ASME B16.5;
Pressure & Temperature according to : ASME B16.34;
Test & Inspection according to : API 598;
Visual Inspection according to : MSS SP-55;
Marking according to : MSS SP-25.
Material For Choice:
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
Monel |
M30C , M35-1 , CZ100 , etc |
Inconel |
CY40 inconel 600 , etc |
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
