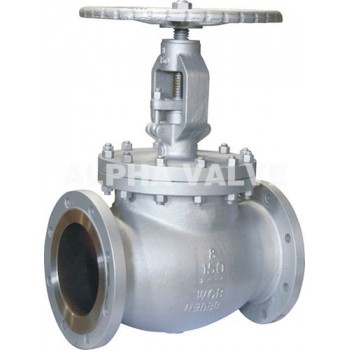

Manual Flanged Globe Valve

Manual Flanged Globe Valve Specification

Generally, lift is just 1/4 of the valve seat port, ensuring a short Opening/closing time.
Only one sealing face exists on the valve body and disc.

For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc.

The valve is designed as a back seat sealing structure.

Use flexible and woven graphite collaboration type packing.

Manual Flanged Globe Valve Advantage

The two opening ways for medium flowing in and out are at the same direction, forming an angle of 180°. This kind of globe valve makes the destructiveness of flowing state be relative less, thus reducing the pressure loss caused by the vale correspondingly.

Application

Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.

Applicable Standard

Design & Manufacture according to : BS 1873;

Face to Face according to : ASME B16.10;

Flange Dimensions according to : ASME B16.5;

Pressure & Temperature according to : ASME B16.34;

Test & Inspection according to : API 6D / API 598;

Visual Inspection according to : MSS SP-55;

Marking according to : MSS SP-25.
