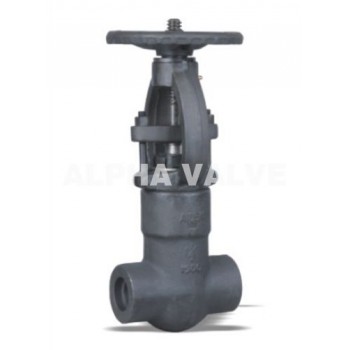

Pressure Seal Gate Valve
◆ Size: 1/2"~2"
◆ Pressure rate: Class 900~2500
◆ Construction: P.S; OS&Y
◆ Socket welding; Screw; Flange
◆ Full port
◆ Replaceable hard-faced seat
◆ Design & manufacture: API602 & ANSI B16.34
◆ Socket welding dimension: ANSI B16.11
◆ Screw end dimension: ANSI B1.20.1
◆ Flange dimension: ANSI B16.5
◆ Face to face: ANSI B16.10
◆ Inspect and test: API598
◆ Body material: A105, LF2, F11, F22, F304, F304L, F316, F316L
