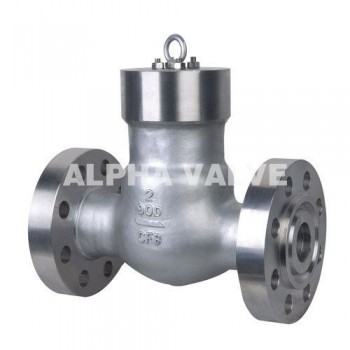

Pressure Seal Check Valve
Pressure Seal Check Valve Specification
Only one sealing face is designed on the valve body and valve disc,
Full stellite overlay seat sealing surface
Good for manufacturing process and easy to maintain.
Use flexible and woven graphite collaboration type packing.
Absolute bonnet joint leak proof.
Optional by-pass design.
Optional designed with a Damping Cylinder.
Pressure Seal Check Valve Advantage
For service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.
It is an automatic valve when it is automatically opened or closed by the force generated by the medium flowing within the pipeline. Its major function is to prevent the backflow of the medium in the pipeline, reverse rotation of the pump and its driving motor, and discharge of the medium in the container.
Application
Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.
Applicable Standard
Design & Manufacture according to : BS1868, ASME B16.34;
Face to Face according to : ASME B16.10;
Flange Dimensions according to : ASME B16.5;
Pressure & Temperature according to : ASME B16.34;
Test & Inspection according to : API 6D / API 598;
Visual Inspection according to : MSS SP-55;
Marking according to : MSS SP-25.
Material For Choice:
Carbon steel |
A216 Gr. WCB , WCC , WCA , etc |
Low temperature steel |
A352 Gr. LCB , LCC , LC1 , etc |
Cr-Mo steel |
A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
Stainless Steel |
A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
Alloy steel |
CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
Super duplex |
A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
Aluminum bronze |
B148 C95500 , C95600 , C95800 , etc |
Monel |
M30C , M35-1 , CZ100 , etc |
Inconel |
CY40 inconel 600 , etc |
Hastelloy |
CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
Incoloy |
CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |
